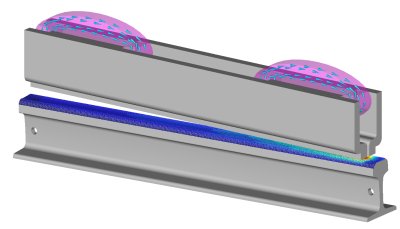

Electromagnets with cylindrical poles can usually be analyzed using electromagnetic simulation software MAGNETO™ RS model with excellent results for the field in the air gap. Investigating saturation of the yoke may require AMPERES™. The Boundary Element Method in our CAE software has a particular advantage for this application because of its ability to generate extremely accurate air gap field analyses.
