Cable Junctions and Terminators Design

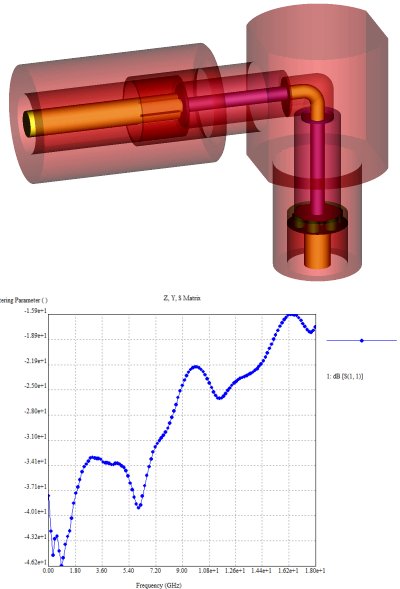

The Scattering matrix(S- matrix), Z-matrix, Y-matrix parameters of a coaxial to coaxial, coaxial to waveguide, coaxial to microtrip line, waveguide to waveguide, and microstrip to microstrip junctions with dissimilar dielectric materials can be obtained over a wide range of frequencies using CHRONOS™. Matched terminations for waveguides and coaxial lines, lumped impedance for coaxial and microstrip lines, or perfectly matched layers (PML) can be used for terminating the structure.
