Power Electronics

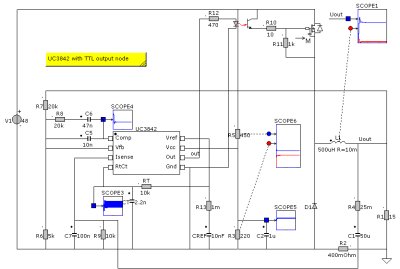

Detailed simulation of a switched model power supply using the
UC3842 current mode control IC. The design includes an optocoupler
in the gate drive circuitry as well as all discrete components to
configure the feedback inside the IC.

Power electronics is the key component in current sustainable energy technology. It is the interface between the source of energy and the consumer. Specialized models in CASPOC allow design engineers to model all phases in modern power electronic designs, not only electrical, but also in magnetic and thermal design.

Whether you are designing on the micro-power level or for high power utilities, power electronics principles can be modeled in CASPOC. Converter structures ranging from basic switched model power supplies, controlled rectifiers, inverters with synchronous rectification up to multilevel inverters are modeled in CASPOC for a conceptual or detailed design.
