Inductors

inductor

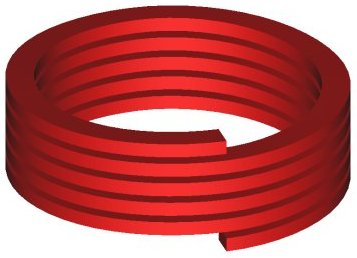

3D Inductor Model

Some specific types of inductors:

Chokes:

Normally our electromagnetic simulation software MAGNETO (2D/RS) would be sufficient, though chokes with air gaps might require AMPERES .

High voltage chokes may require analysis of the electric fields in and around the device to determine safe operating conditions. Usually this requires COULOMB , though simple geometries may permit the use of ELECTRO (2D/RS).

Adjustable Core Inductors:

If the core and plug in adjustable core inductors possess rotational symmetry, an RS MAGNETO model should be sufficient, but complex geometries or examination of fields external to the inductor might require AMPERES .

Saturable Reactors:

The presence of both DC and AC windings in saturable reactors necessitates a transient analysis using OERSTED .

Current Density Contour Plot on
coil cross-sections

High voltage inductors may require analysis of the electric fields in and around the device to determine safe operating conditions. Usually this requires COULOMB , though simple geometries may permit the use of ELECTRO (2D/RS).

Current Limiting Reactors:

In the case of current limiting reactors, if the reactor possesses rotational symmetry, an RS MAGNETO model should be sufficient. Complex geometries or examination of fields external to the reactor might require AMPERES .

High voltage reactors may require analysis of the electric fields in and around the device to determine safe operating conditions. Usually this requires COULOMB , though simple geometries may permit the use of ELECTRO (2D/RS).

Simulations using Integrated CAE software permit determination of inductor performance and equivalent circuit parameters.
