Alternators and Generators

Alternator Generator

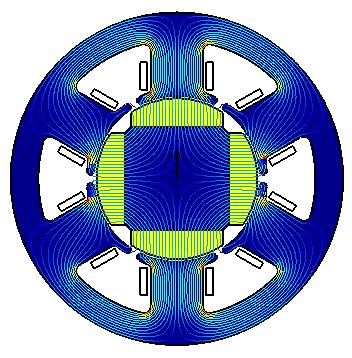

Permanent Magnet 3 phase Generator

The open circuit performance of Alternators and Generators can be studied using our CAE software MAGNETO or AMPERES . The performance under load or short circuit requires a rotational transient analysis using OERSTED .


Analysis Type 2D or RS

3D

Open Circuit Analysis

MAGNETO

AMPERES

Short Circuit or Loaded OERSTED
