Switchgear

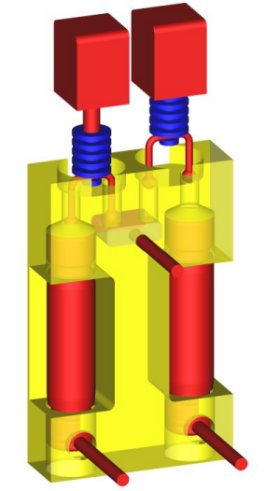

Two channel discharge switch assembly
Image courtesy of Megger.
Image courtesy of Megger.
Switchgear designers may require electric field analysis to evaluate the possibility of corona or dielectric breakdown; magnetic field analysis to calculate forces under short circuit conditions; eddy current analysis to determine skin effect; and thermal analysis to determine operating temperatures.
|
Analysis Type |
2D or RS |
3D Simulation |
| Electric Field Analysis | ELECTRO |
COULOMB (Phasor Approximation) |
|
Magnetic Field Analysis |
MAGNETO |
AMPERES (Phasor Approximation) |
|
Eddy Current Coupling Analysis (and magnetic field analysis) |
OERSTED |
FARADAY (Phasor Approximation) |
| Thermal Analysis | KELVIN |
CELSIUS |
At right: The switch, modeled by leading test specialist Megger, is rated to 40 kV from 0 – 5000 ft MSL, -20C to 50C and up to 90% humidity. Each channel is rated for 2 kJ under normal operation and 6 kJ for emergency operation.
