Busbars

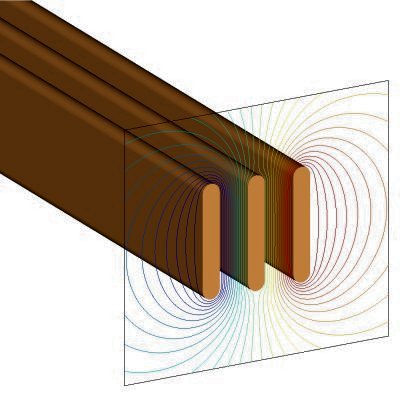

Voltage contours around busbars
Busbar designers may require electric field analysis to evaluate the possibility of corona or dielectric breakdown; magnetic field analysis to calculate forces under short circuit conditions; eddy current analysis to determine skin effect; and thermal analysis to determine operating temperatures. Determining the impedance of the busbars may require both electric and magnetic field analysis.
|
Analysis Type |
2D or RS |
3D Simulation |
| Electric Field Analysis | ELECTRO |
COULOMB (Phasor Approximation) |
|
Magnetic Field Analysis |
MAGNETO |
AMPERES (Phasor Approximation) |
|
Eddy Current Coupling Analysis (and magnetic field analysis) |
OERSTED |
FARADAY (Phasor Approximation) |
| Thermal Analysis | KELVIN |
CELSIUS |
